Flame Arrester

Flame Arrester

Product Description

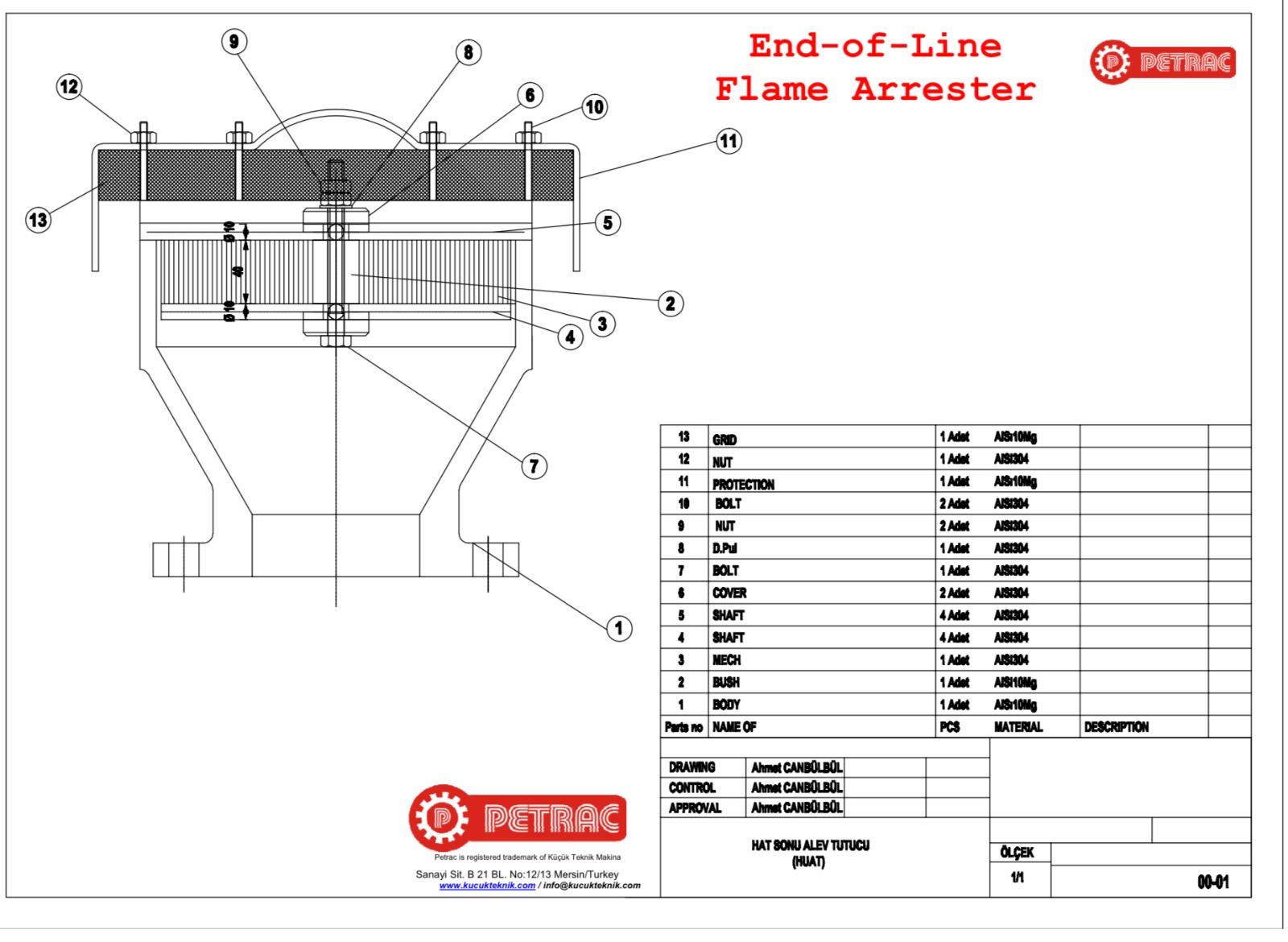

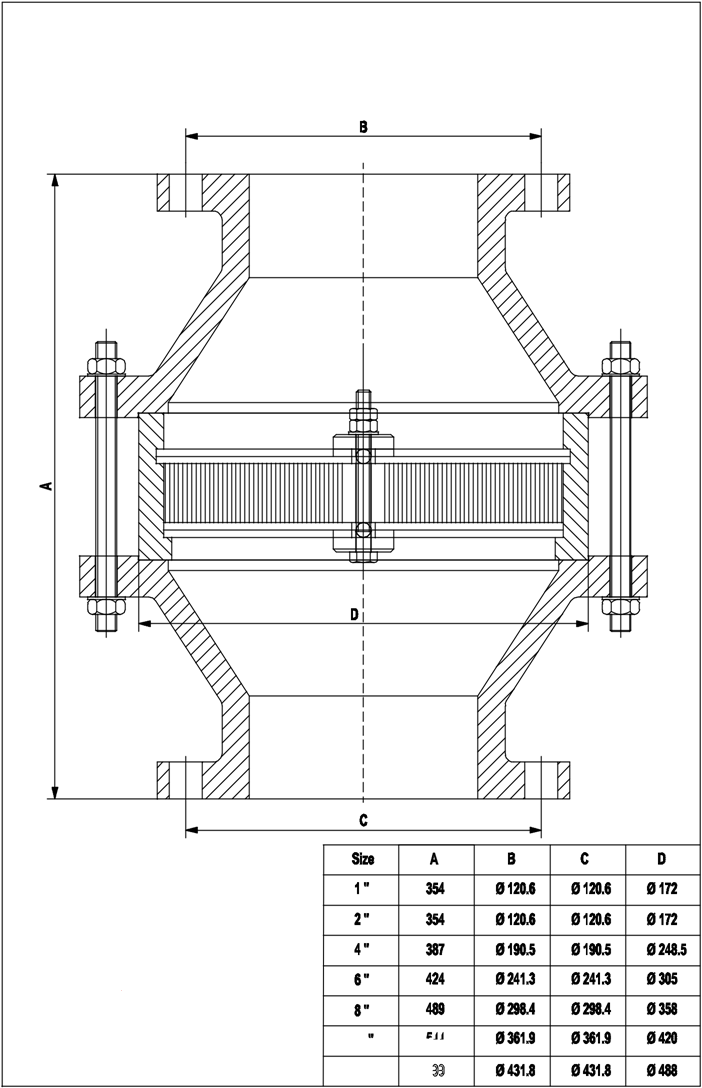

Petrac KTM-FA Model Number 410 flame arrester is a safety device that has a flame barrier with a large number of defined passage gaps, whose gap cross section is set with regard to the properties of the flowing gas, is cooled effectively and secured against a flame flashback in the case of continuous combustion. They also allow free venting in combination with flame protection for vertical vent applications. They are typically mounted to a flange or pipe, which  connects the vapor space of a storage tank or a pipeline

Product Benefits

Petrac flame arrester Model 410 provides safety. It blocks the flame and does not allow flame travel through a pipeline or any in out-let.
Protect s environment .Flame arrester prevents your facility against fire that is caused by explosions.
Special cap design protects the flame arrester interior material against dust and rain

Key Features:

Petrac KTM-FA Model 410 internal materials are AISI 316 or 304 stainless steel  Easy to clean internal materials.
Easy to install. You do not need a special tool or experience to install the Petrac flame arrester Model 410.
Petrac KTM-FA Model 410 comes with the paint color you choose.
Standard manufacturing comes with API 150 class flange; however other flange types are available on request.
Protection cap is manufactured from aluminum material.
